Heavy duty safety harness sewing machines

Release date:2023-11-04 visit:1135 Author:BILL

A key advantage for our company is professional experience in the field of heavy materials and thick thread. We are clear that our success depends on the success of our clients. We know that each company has its specific needs,so we work with personalized solutions, seeking to identify and meet the demand of each client. It is in this way that HighTex has earned the trust of important companies.

We have in-house technicians who have over 20 years of combined experience in servicing and repairing these special sewing and cutting equipment used in manufacturing of height safety harness, fall protection equipment, seat belts, backpack, parachutes harness and sports goods. HighTex heavy duty automatic sewing machines and automated cutting machines have been widely used by worldwide height safety harness manufacturers in United States, Germany, Italy, United Kingdom, Argentina, Armenia, Australia, Belarus, Belgium, Brazil, Bulgaria, Canada, China, Colombia,Czech Republic, Fiji, Finland, India, Indonesia, Iran, Israel, Japan, Lithuania, Latvia, Malaysia, Mexico, Netherlands, New Zealand, Peru, Poland, South Korea, Romania, Russia, Serbia, Singapore, South Africa, Sweden, Thailand, Tunisia, Turkey, Ukraine, United Arab Emirates, Venezuela and Vietnam.

These highly specialized harness sewing machines have been developed taking into consideration the requirements of manufacturers of safety harness and fall protection equipment, that could reduce dependence on skilled workers. In addition, the quality of the seams will be controlled by computer or special device, so you can reduce the cost of the final product, improve the quality and increase the production speed. These measures will allow us to successfully compete with other manufacturers - both European and Eastern (China), offering our customers high quality products at low prices.

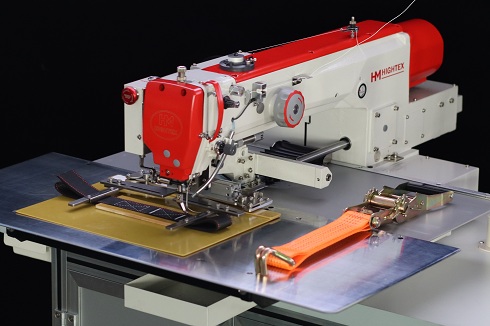

ASM911 Most affordable automatic programmable sewing machine for heavy duty webbing of fall protection safety harness
This heavy duty automatic webbing sewing machine is one of the cheapest programmable electronic pattern sewing machines on the market. It must be said that its price is not synonymous with poor quality. Although inexpensive, this CNC programmable sewing machine is made of high quality materials and includes the most innovative clamping system. The 3-fold capacity large hook reduces the frequency of bobbin changes. Easily sew 10mm heavy duty webbing with thick thread up to metric size #10 (=T-270, V277, 840dx3).
Click here for video on YouTube

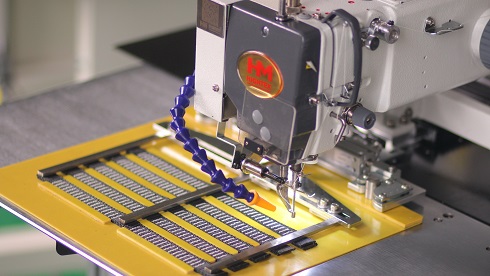

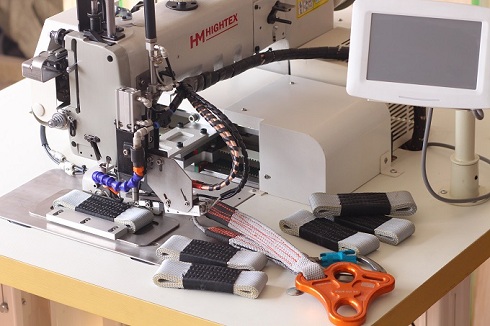

MLK500-2516R Very strong and robust programmable sewing machine for automatic stitching shock absorbing webbing lanyard (heavy duty shock absorbers, screamers) with perfect stitch quality
Click here for video on YouTube

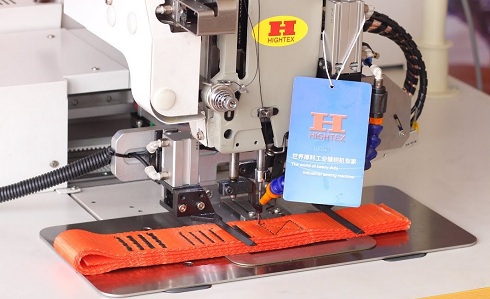

MLK700 Heavy Duty Automatic Safety Harness Sewing Machine with Super Large Hook
A new generation of heavy duty programmable automatic sewing machine for safety harness is now launched! This heavy duty pattern sewing machine equipped with largest rotary hook in today market (6 times larger bobbin capacity), so the frequency of bobbin changes can be reduced greatly, leading to productivity enhancement. Easily stitch 14mm heavy duty synthetic webbing, with thick thread up to metric size #7 (= V415, T-400, 1300dx3). The bobbin thread detector will automatically stop machine when bobbin thread runs out, as a result, sewing operators can concentrate on their work without worrying about the bobbin thread, increasing the productivity, and it is possible to run 2 or 3 machines with only one person, great for saving labor cost.
Click here for video on YouTube

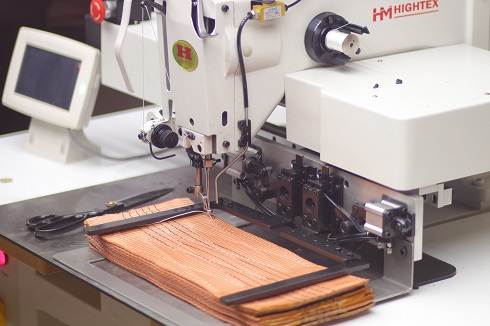

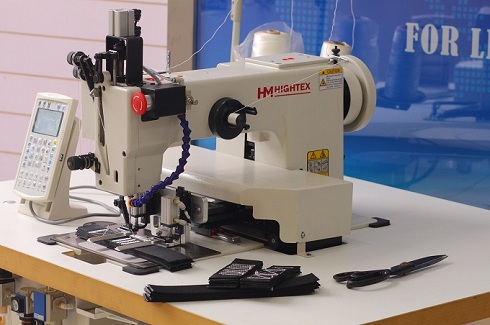

71008S The best selling extra heavy duty automatic pattern sewing machine for height safety harness and personal protective equipment (PPE) (total thickness of harness webbing no more than 18 mm. The optional clamp is available for stitching 6 - 18mm climbing ropes.)
Video for sewing safety harness
Video for sewing climbing rope

7273PK Heavy duty programmable pattern sewing machine with automatic thread trimmer (burn type) for manufacturer of safety harness and parachute webbing harness (total thickness of harness webbing no more than 15 mm)
Click here for video on YouTube

733PLC Super heavy duty automatic pattern sewing machine for manufacturer of fall protection equipment, parachute harness and military equipment (total thickness of harness webbing no more than 28 mm)
Click here for video on YouTube

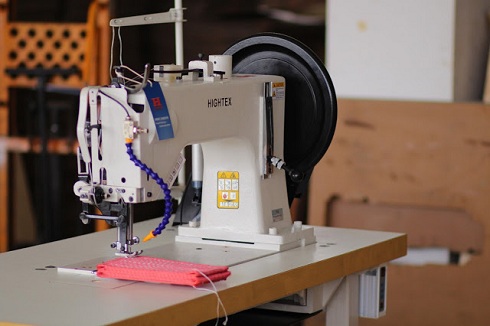

733CS Super heavy duty walking lockstitch sewing machine for assembly seams of safety harness and military equipment. It is a modern verions of Consew 733R5 and Seiko SLH-2B-FH-1.
Click here for video on YouTube

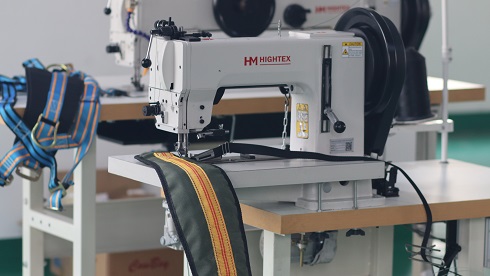

205-370BH Extra heavy duty triple feed industrial sewing machine with Viberating binder for binding half body harness, the movable binder attachment is perfect for binding cuvered edges of wide waist strap & leg straps.
Click here for video on YouTube

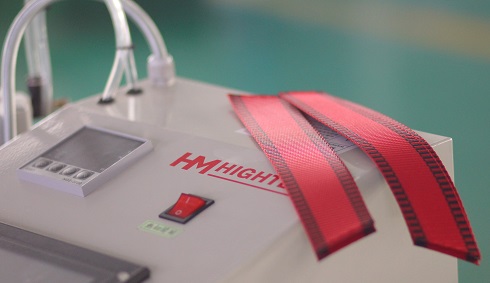

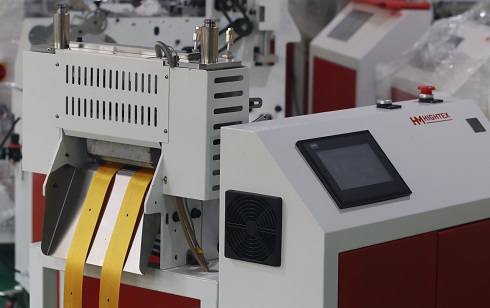

828B Heavy duty automatic hot knife webbing cutting machine for cutting, measuring and sealing up to 5mm thick harness webbing
Click here for video on YouTube

828C Heavy duty automated hot knife webbing cutting machine with rotating knife for angle cutting (-45°/+45°), for measuring and sealing up to 5mm thick harness webbing
Click here for video on YouTube

828CS Automatic webbing angle cutting machine (heavy duty webbing angle cutter) is a single blade oblique hot cutting machine for 0-45° angle cutting in the manufacturing of safety harnesses & lanyards and personal protective equipment (PPE), dog harness collar and leash and luggage production.
Click here for video on YouTube

828AM Heavy duty webbing point-marking cutter (heat cutter with marking)
828AM Heavy duty webbing point-marking cutter is an extra strong heat cutter and point marker for webbing straps. This affordable hot knife cutting and marking machine can automatically cut, seal and mark the positoin for subsequent sewing of height safety harness, seat belts, Ratchet straps / tie down straps, webbing lifting slings and military straps.
Click here for video on YouTube

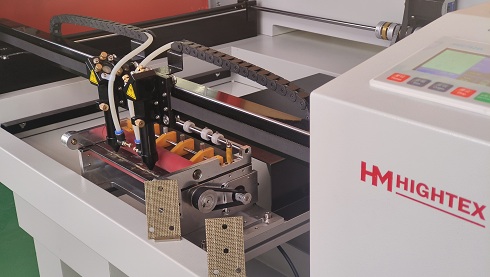

828Q Programmable webbing laser cutting machine and hole punching machine. This CO2 Laser Cutter is capable of handling the toughest strip cutting tasks, it is perfect for angle cutting, shape cutting and hole punching a variety of products including harness webbing, seat belts, military straps, dog harness, Kevlar and more with ease
Click here for video on YouTube

828X is a heavy duty automatic grommet machine punches a hole in the material and feeds and attaches both the grommet and washer, all in a single cycle. The result is a strong, durable quality setting with greater productivity, all leading to a fast return on investment. The machine was specifically designed for heavy duty industrial webbing including Nylon, Polyester, Polypropylene, Kevlar and Nylon. Compare to other self-piercing automatic eyelet machines in today market, the great advantage of 828X is its extra powerful piercing force that allow you to punch up to 5mm thick high density synthetic harness webbing.
Click here for video on YouTube

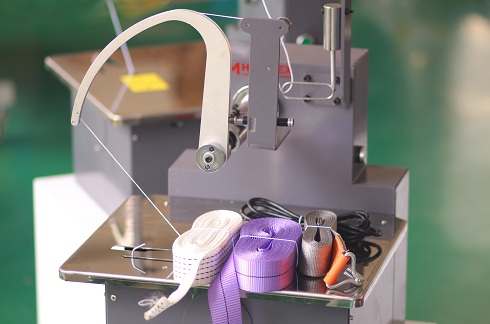

828G Automatic strapping machine (automatic tying machine or automatic banding machine) for packing finish safety harness belts
Click here for video on YouTube

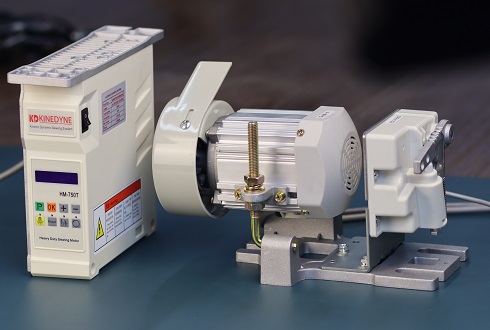

Kinedyne HM-750T the most powerful energy saving servo motor for heavy duty industrial sewing machines
A super powerful, quiet and reliable energy saving servo motor perfect for extra heavy duty webbing sewing machine. This high performance servo motor can save 60-80% electricity and improve 20-40% efficiency of the harness sewing machines. Usually the cost of servo motor can be recovered within 2-3 years by saving money on electricity. However the advantage of time savings and labor cost saving will make the actual return on investment faster.

Click here for 3D video

Click here for DEMO video

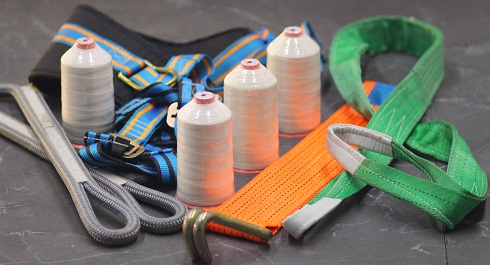

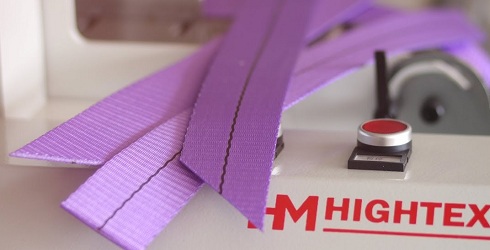

Best thread for sewing Nylon webbing and harness

HigTex P40 heavy duty UV treated sewing thread is a bonded polyester sewing thread, designed for applications exposed to the sun, salt water, wind, marine conditions and anywhere that can be tough on threads. It is one of the most strongest thread for safety and durable seams in the manufacturing of outdoor products and webbing products, such as lifting & rigging slings, cargo lashing belts & ratchet tie down straps, climbing rope & rescue rope, height safety harness & fall protection equipment, sailmaking, parachutes, tents, awnings, covers and military gear.
HighTex P40 high strength bonded polyester thread features at affordable price and will greatly improve your sewing efficiency.
Click here for more information

Which automatic sewing machine is best for safety harness?

Click here for more information

If you have any questions or concerns, please feel free to contact us at info@automatic-sewing.com, thank you!
